Patient-Agnostic Spine Registration in Real Time

A hierarchical multi-agent Soft Actor-Critic framework that aligns a preoperative CT volume with intraoperative C-arm X-rays in six degrees of freedom — submillimeter accurate, and fast enough for the operating theatre.

Get the Dataset View the Code The Method

Tracked instrument and trajectory on the registered CT volume

Darshan K. N.^1,2, Sriram L^2,*, Sarath P.^2,*, Vivek Maik², Manojkumar Lakshmanan², and Mohanasankar Sivaprakasam^1,†

¹ Dept. of Electrical Engineering, Indian Institute of Technology Madras, India² Healthcare Technology Innovation Centre (HTIC), IIT Madras, India

^* Equal contribution·^† Corresponding author

mohan@ee.iitm.ac.in

Figure 1

SpineSAC Architecture

A CT volume and a calibrated AP/LP C-arm pair go in; the pose is mapped into canonical coordinates and refined by three SAC agents at increasing resolution.

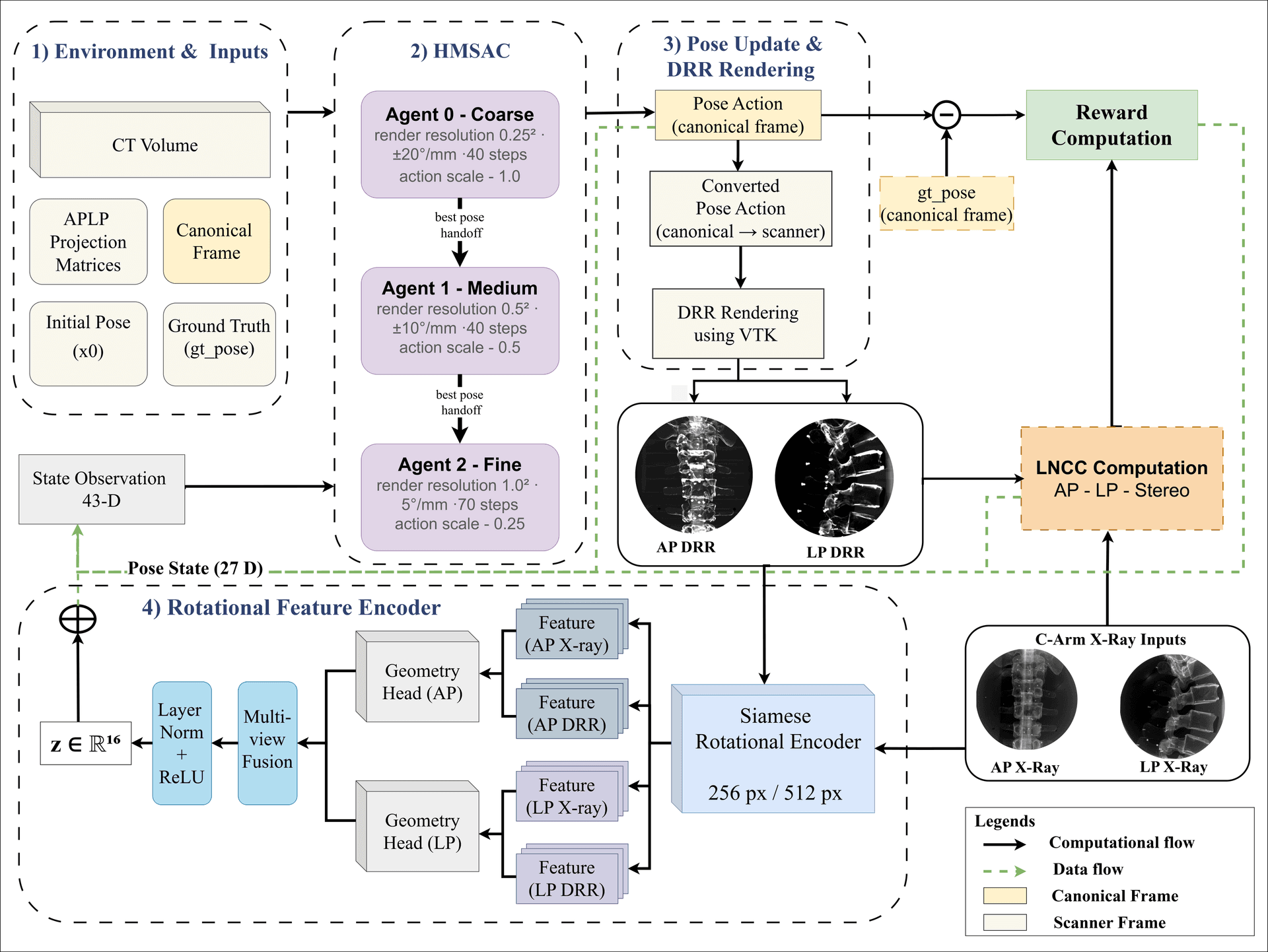

SpineSAC hierarchical multi-agent Soft Actor-Critic architecture.

Validated across C-arm systems, sawbone phantoms and cadaver anatomy

40 / 10 / 9train · val · test split

0.00 mm

Phantom TRE

0.00 mm

Cadaver TRE

0×

Faster inference

AP–LP scenarios

Abstract

Task: Intraoperative 2D–3D vertebral registration
Input: AP + LP C-arm X-rays, projection matrices, preoperative CT
Output: Registered 6-DoF vertebral pose [rx, ry, rz, tx, ty, tz]
Data: 59 AP–LP acquisition scenarios, three sawbone phantoms, cadaver validation

We propose SpineSAC, a hierarchical multi-agent Soft Actor-Critic framework that performs autonomous six-degrees-of-freedom vertebral registration in a patient-agnostic manner.

Aligning CT to C-arm imagery is a foundational step in image-guided spinal surgery. Conventional iterative optimisation reaches submillimeter accuracy but is far too slow for real-time use, while learning-based methods generalise poorly across patient anatomies and imaging systems. SpineSAC addresses both limitations at once.

A PCA-based canonical coordinate system maps poses from any CT scanner or C-arm into a unified anatomical frame; a rotational feature encoder condenses AP and LP DRR–X-ray pairs into a compact rotation-aware embedding; and three SAC agents refine the pose sequentially at increasing resolution. On sawbone phantoms the method reaches a target registration error of 1.45 ± 0.5 mm, and 2.31 mm on cadaver data, with a 9× inference speedup over the computational baseline.

2D–3D Registration

Reinforcement Learning

Soft Actor-Critic

Image-Guided Surgery

Equivariant Networks

DRR

One Frame for Every Patient

The principal axes of the bone voxels define a canonical coordinate system, so a pose measured on one scanner means the same thing on any other. A policy trained on one anatomy transfers to unseen patients without retraining.

See the Method

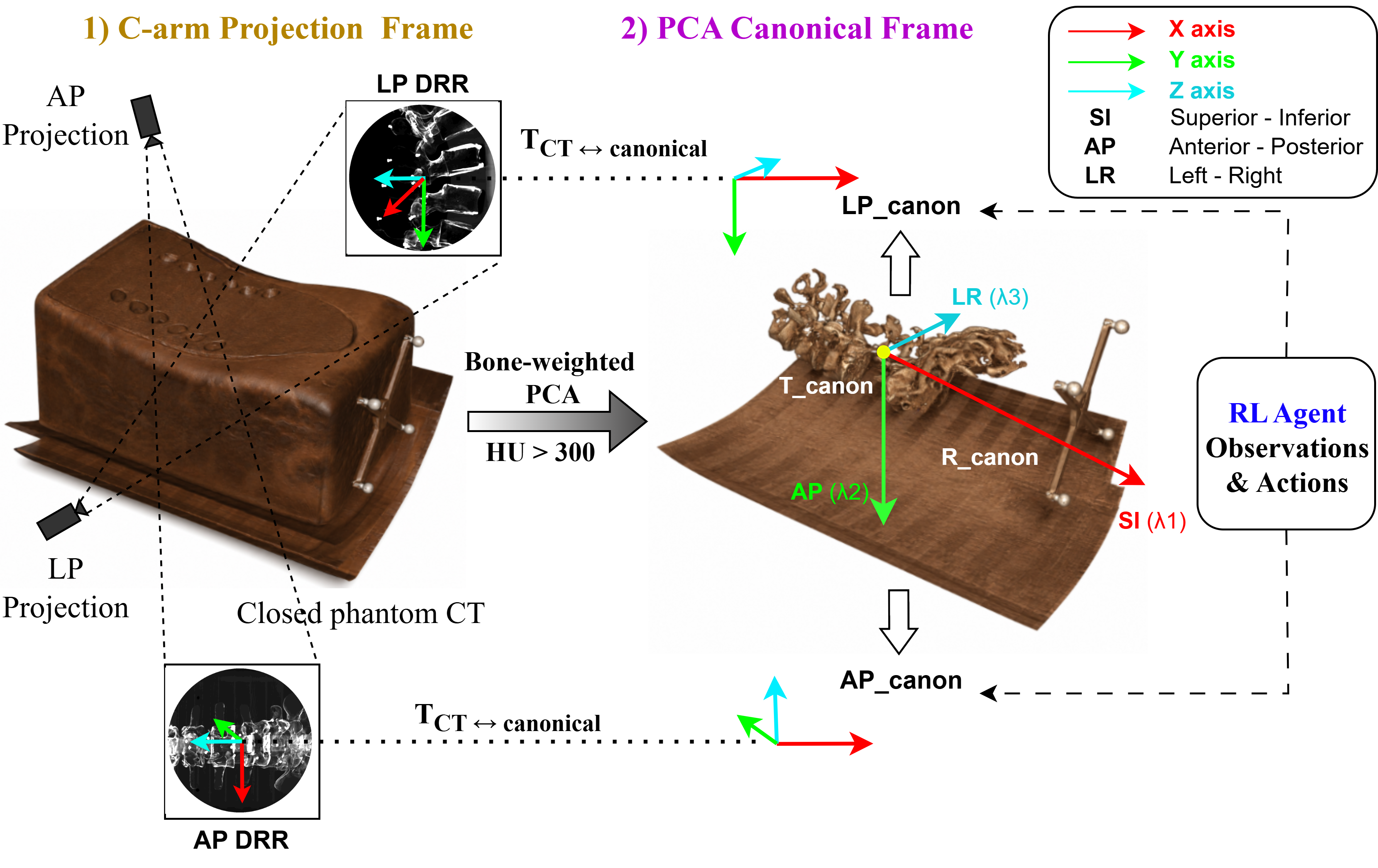

PCA-based canonical coordinate system derived from the principal axes of the vertebral bone voxels.

Rotation, Measured Directly

The rotational feature encoder is an equivariant Siamese network: AP and LP DRR–X-ray pairs pass through shared R2Conv branches, geometry heads and a multi-view fusion step, collapsing into a 16-d embedding of the remaining rotational misalignment — a geometrically grounded observation rather than raw pixels.

How It Trains

R2Conv equivariant layers

Siamese AP/LP branches

Geodesic + Huber losses

InfoNCE contrastive term

16-d rotation embedding

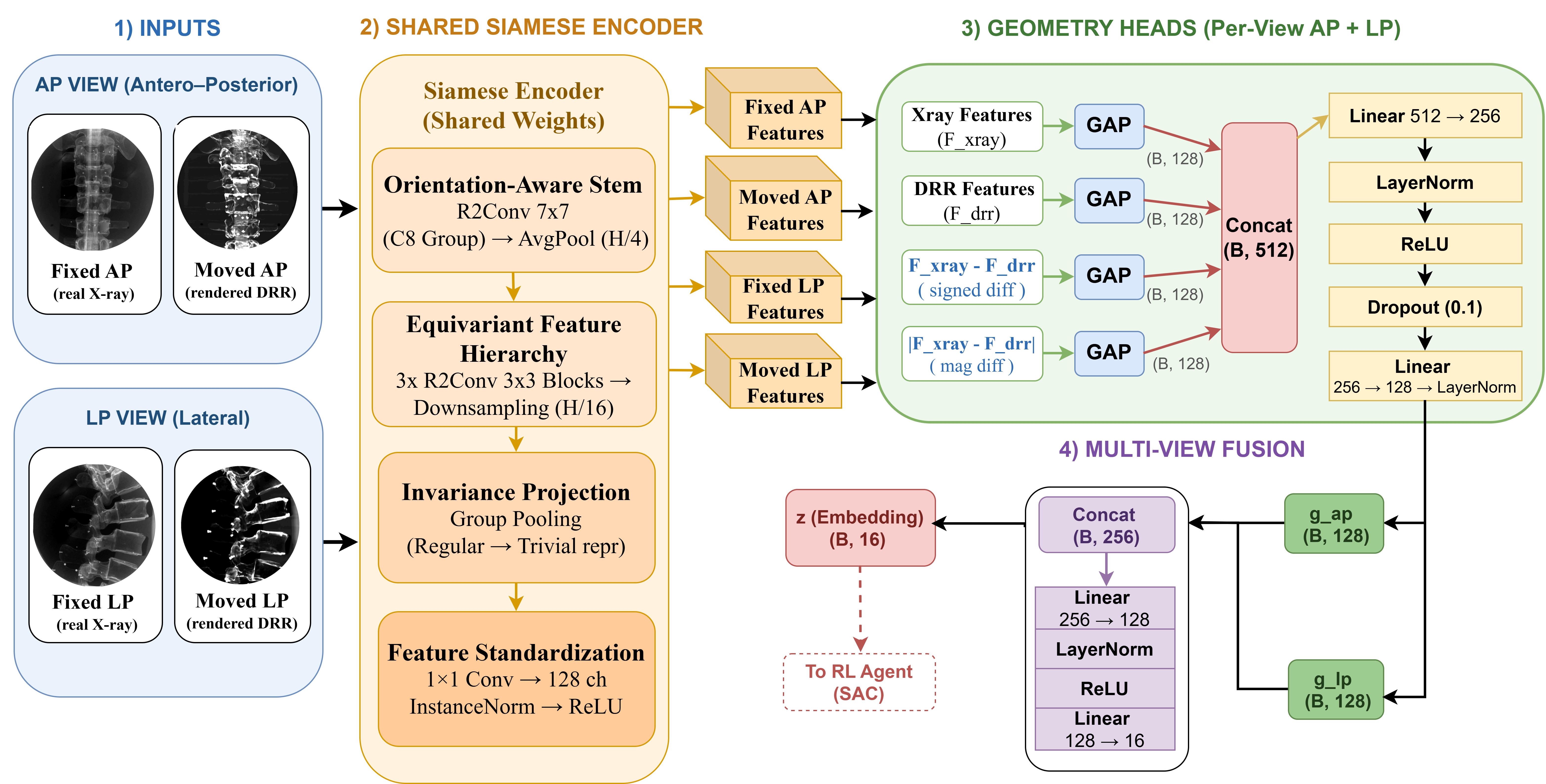

Rotational feature encoder: Siamese R2Conv branches over AP and LP DRR-X-ray pairs fused into a 16-d embedding.

At a Glance

Submillimeter Accuracy. Operating-Room Speed.

A reinforcement learning formulation that keeps the accuracy of iterative optimisation while collapsing its runtime — and generalises past the patient it was trained on.

Patient-Agnostic

A PCA canonical frame maps poses from any CT scanner or C-arm into one anatomical reference — no per-patient retraining.

Real-Time Speed

A full six-DoF registration completes in about 5 s against 45 s for the iterative optimisation baseline.

Submillimeter Class

1.45 ± 0.5 mm target registration error on held-out sawbone phantom scenarios.

Rotation-Aware Features

An equivariant Siamese encoder condenses AP and LP DRR–X-ray pairs into a compact 16-d misalignment embedding.

Hierarchical Agents

Three SAC agents at rising resolution and shrinking capture range, each owning one band of the error distribution.

Clinically Validated

The phantom-trained policy transfers unchanged to cadaver acquisitions at 2.0–2.5 mm TRE.

Method

Six stages from two radiographs to a registered pose

Two X-ray views, their calibrated projection matrices and a preoperative CT go in. A registered 6-DoF vertebral pose comes out, in about five seconds.

Rather than learning one policy for one anatomy, SpineSAC learns a policy in a frame where every rotation and translation carries the same anatomical meaning across patients.

01
Initial pose estimation
Landmark correspondences between the AP and LP views give a starting 6-DoF estimate for the target vertebra — the pose the agents begin from.
02
PCA canonical transform
The principal axes of the bone voxels define a canonical coordinate system. Poses from any CT scanner or C-arm map into one anatomical reference frame, so a policy trained on one patient transfers to unseen patients without retraining.
03
Rotational feature encoder
An equivariant Siamese network condenses the AP and LP DRR–X-ray pairs into a 16-d rotational misalignment embedding, giving the agent a geometrically grounded observation. It feeds the 43-d state vector each agent sees.
04
Agent 0 — coarse registration
Renders at 256 px over a ±20°/mm capture range for up to 40 steps, pulling a badly misaligned initial pose into the neighbourhood of the solution.
05
Agent 1 — medium refinement
Takes over at 512 px with a tightened ±10°/mm range and 40 steps, trading capture range for precision now that the coarse error is gone.
06
Agent 2 — fine registration
Runs at 1024 px within ±5°/mm for up to 70 steps. At every step the updated pose drives a VTK DRR renderer, and the rendered DRR is compared against the intraoperative X-ray to form the next observation and reward.

Contributions

Three are new

Canonical coordinates

Vertebral poses from any scanner or C-arm are mapped into a unified anatomical frame derived from the principal axes of bone voxels, so each pose component means the same thing across datasets.

Rotational feature encoder

An equivariant Siamese network built on R2Conv layers, trained with geodesic, Huber and InfoNCE losses, producing a compact rotational misalignment embedding.

Hierarchical multi-agent SAC

Three independent SAC agents at rising resolutions and shrinking capture ranges, each responsible for one band of the error distribution.

Curriculum learning

Training difficulty ramps with the agent's competence rather than starting at the full capture range.

Replay filtering

Transitions are screened before entering the buffer, keeping the off-policy updates on informative experience.

Knowledge transfer

Each agent is warm-started from the one below it, so the fine agent does not relearn the coarse policy from scratch.

Per-agent configuration

config.py

Agent	Resolution	Capture range	Max steps	Entropy target
Agent 0 — coarse	256 px	±20 °/mm	40	−1.5
Agent 1 — medium	512 px	±10 °/mm	40	−3.0
Agent 2 — fine	1024 px	±5 °/mm	70	−6.0

Shared across agents: learning rate 1e−4, batch size 512, discount 0.99, soft update coefficient 0.005, four gradient steps per environment step, actor and critic hidden dims [256, 128, 64].

Results

Registration on held-out phantom scenarios

The predicted pose shown as a DRR–X-ray overlay, against three reinforcement learning baselines trained on the same splits.

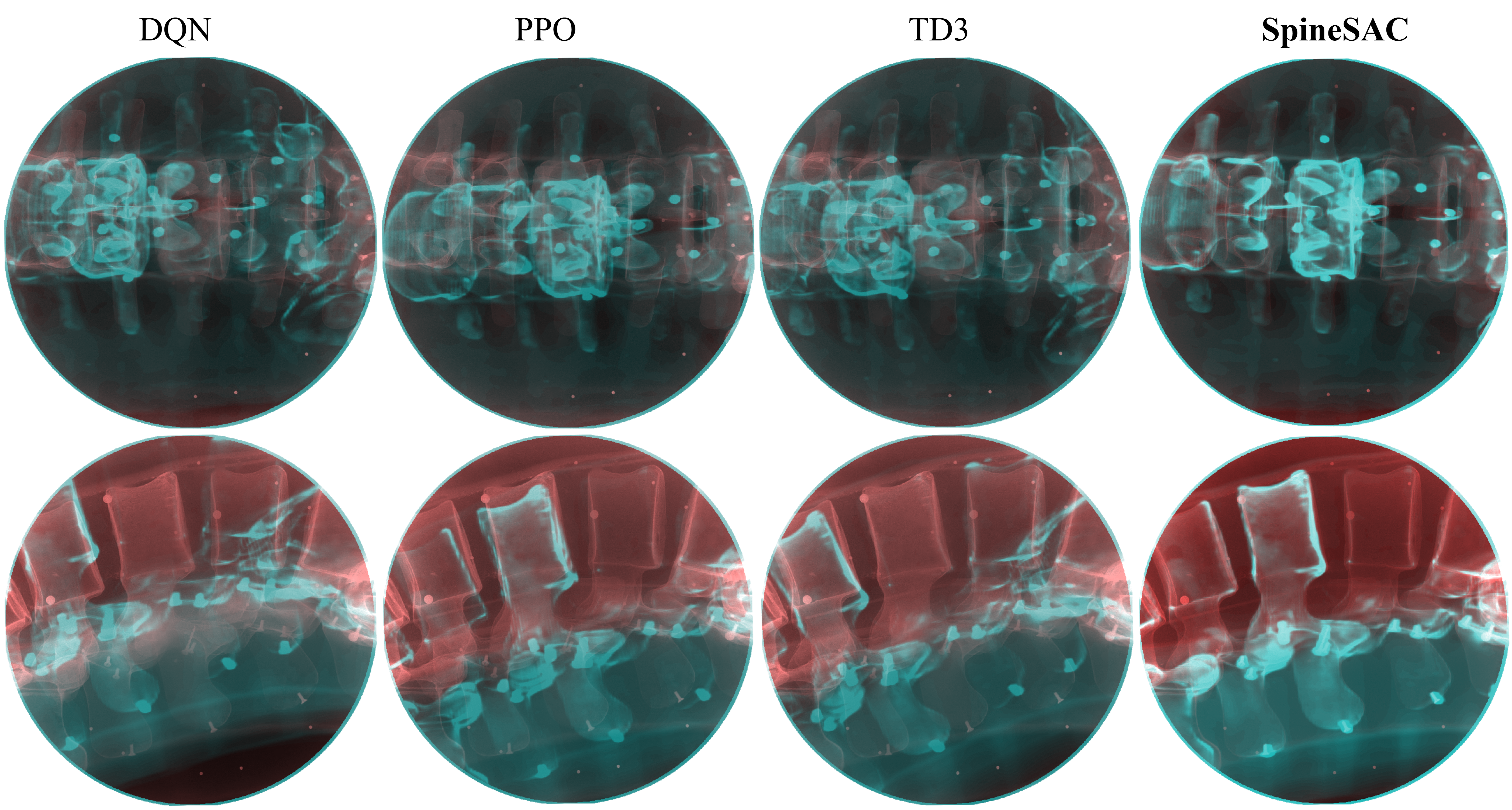

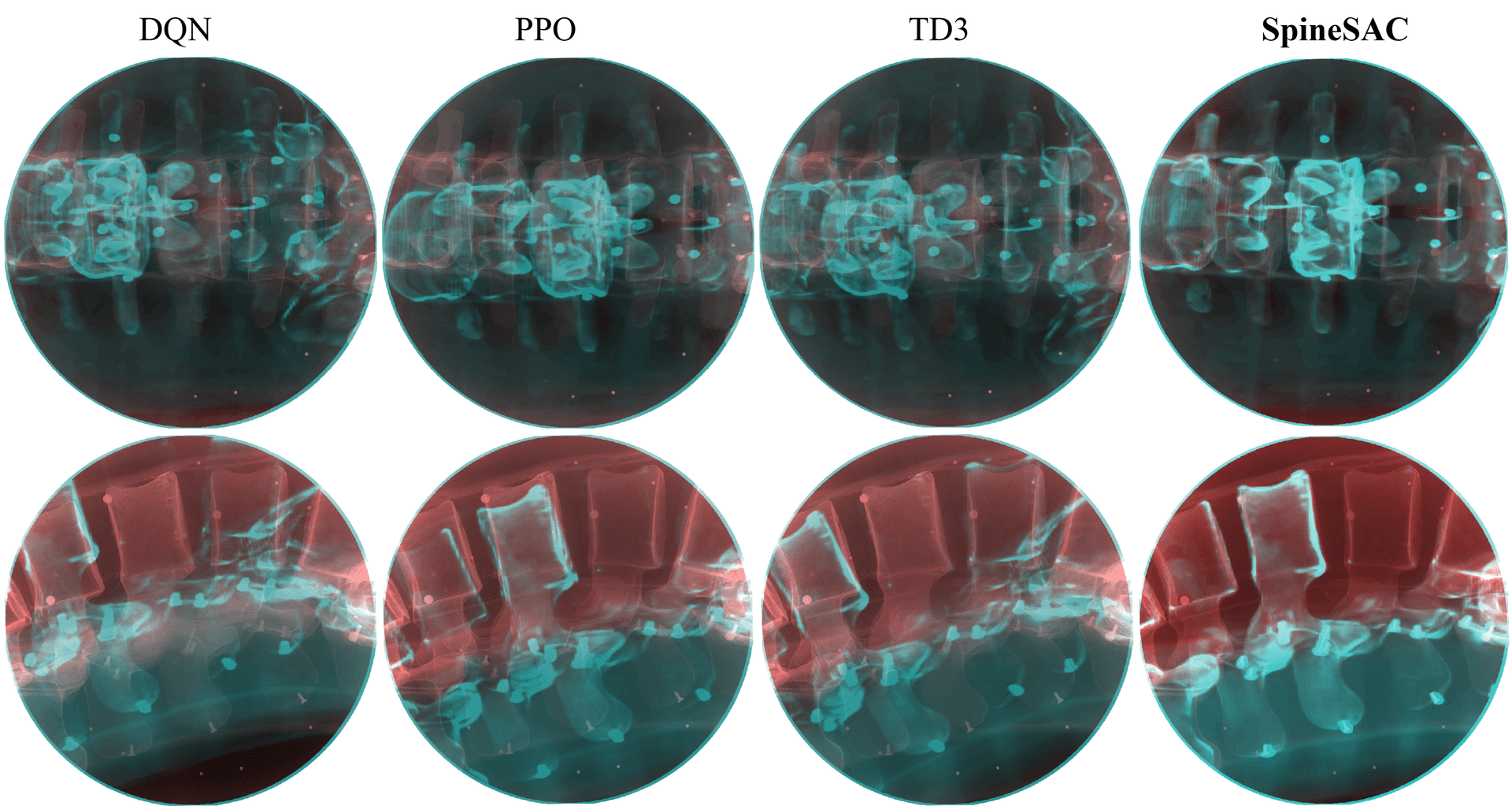

Blend view comparison of SpineSAC and baseline methods. — Figure 2X-ray–DRR overlay for SpineSAC alongside DQN, TD3 and PPO. Anatomical alignment is visibly tighter in the SpineSAC predictions.

On the phantom dataset SpineSAC registers to a target registration error of 1.45 ± 0.5 mm — roughly a fourfold reduction over the TD3, PPO and DQN baselines, all of which remain above 5.7 mm.

Metric

C-arm

Show

Phantom TRE (mm)lower is better · C-arm closed · phantom

Inter-architecture comparison

TD35.76 ± 0.8
DQN7.1 ± 0.6
PPO6.6 ± 0.4
SpineSAC(ours)1.4 ± 0.5best

Intra-ablation study

Base SAC4.9 ± 0.5
HMSAC2.74 ± 0.4
HMSAC + CCS1.97 ± 0.5
HMSAC + RFE1.68 ± 0.5

02468

Table 1 — 8 methods, C-arm closed and open. SpineSAC is highlighted; the remaining rows are context. Switch to Table for every metric at once.

Inference and per-vertebra error

9× speedup

A full registration completes in about 5 s against 45 s for the iterative baseline — a ninefold speedup, which is what moves the method from offline analysis into the operating theatre.

Per-region error across L3–L5 — right pedicle, left pedicle and spinous process — stays below 1.8 mm, so accuracy does not concentrate in one easy landmark.

Clinical validation — cadaver

Real anatomy

The policy trained on sawbone phantoms was applied unchanged to cadaver acquisitions, with no patient-specific retraining.

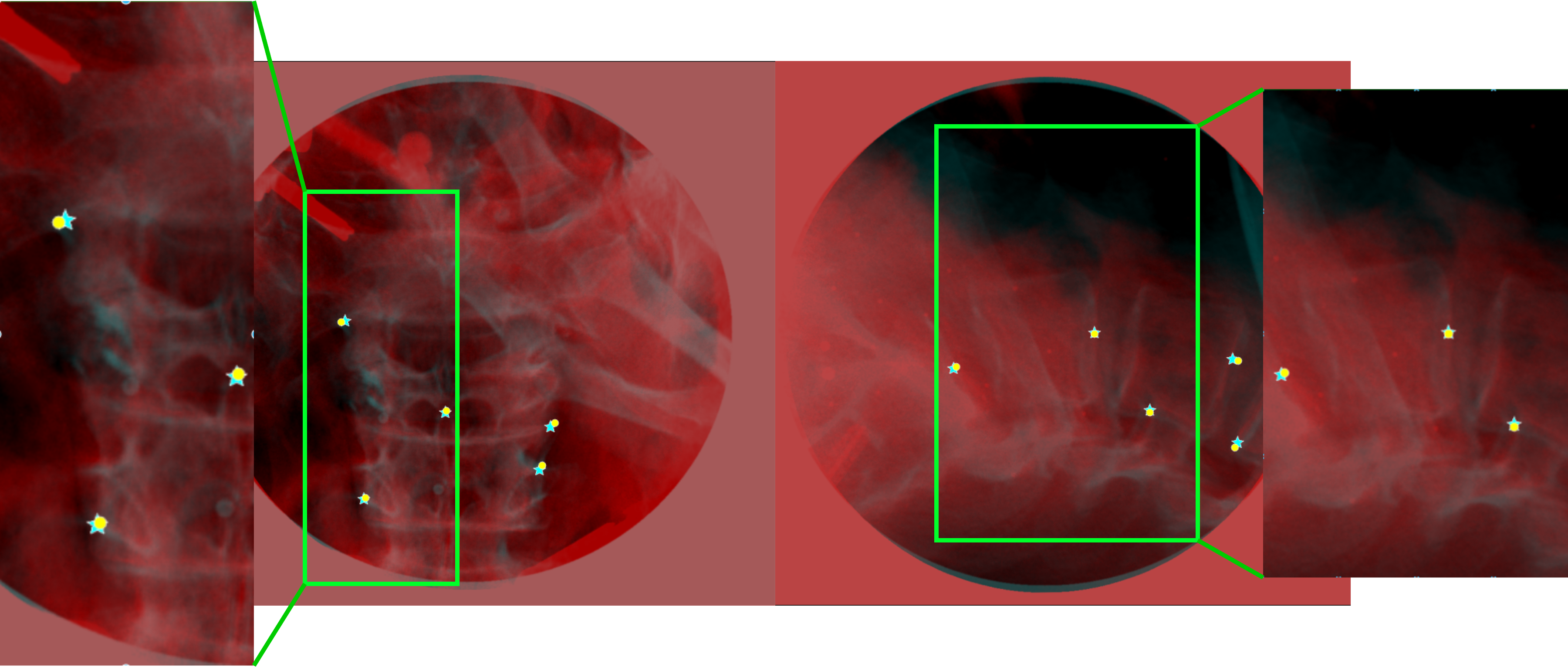

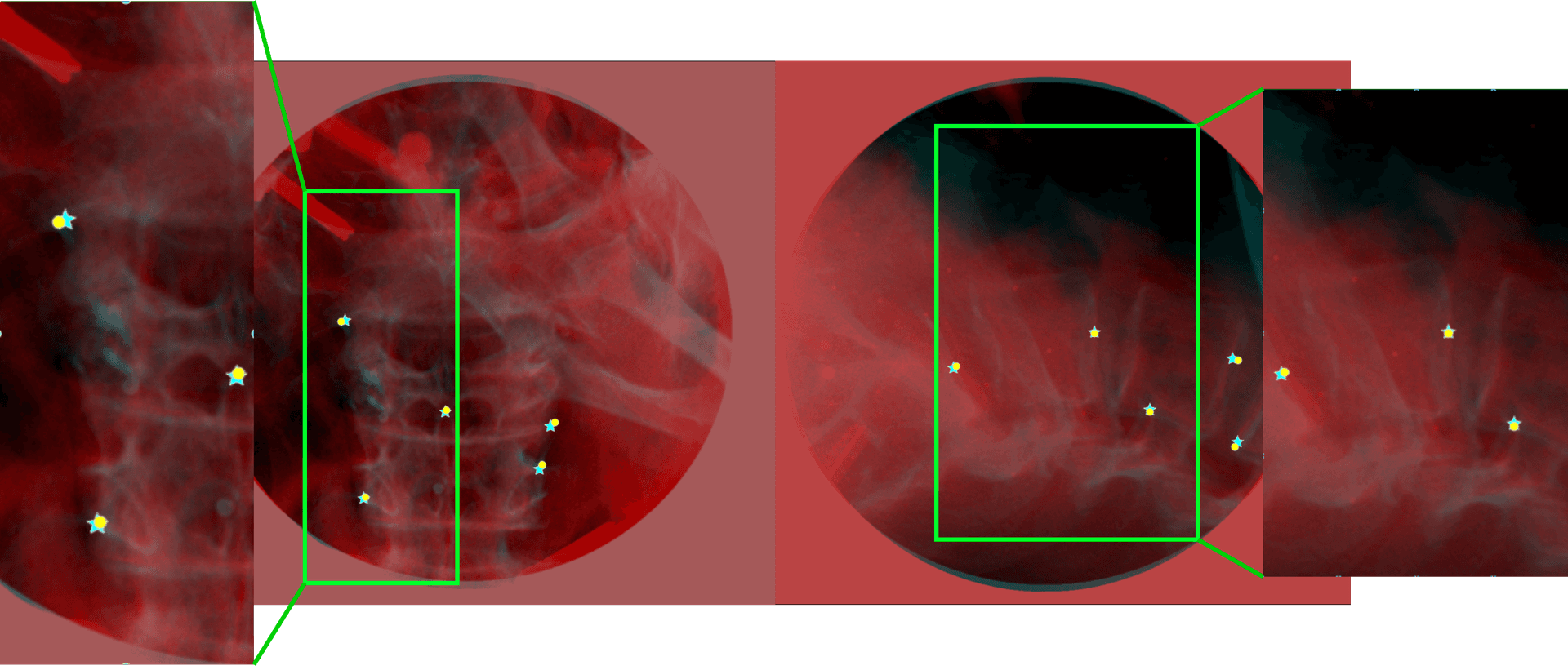

Blended DRR-X-ray overlay with predicted landmarks on cadaver. — Figure 3Blended DRR–X-ray overlay for the AP (left) and LP (right) views. SpineSAC generalises to real cadaver anatomy at a TRE of 2.0–2.5 mm.

Dataset

The full dataset is open-sourced

All 59 AP–LP X-ray acquisition scenarios, with paired projection matrices and CT volumes, released alongside pretrained weights.

The scenarios were collected from three sawbone phantoms — one closed, two open — across multiple C-arm systems with varying source-to-patient distances, X-ray intensities and C-arm orientations. The split is 40 / 10 / 9 for training, validation and testing.

Download from Google Drive

Download each subfolder individually and keep its original name; the relative paths in datasets.py then resolve with no manual edits.

ct_folderPreoperative CT volume (DICOM)

xray_ap / xray_lpAP and LP intraoperative X-rays

aplp_txtProjection matrix for both views

x0Initial 6-DoF pose estimate

gt_poseGround-truth 6-DoF pose

roi_ap / roi_lpVertebra ROI boxes per view

Pretrained weights

Google Drive

HMSAC checkpoints

Final three-agent policies — place under checkpoints/.

RFE checkpoints

Rotational feature encoder — place under ../ckpts_v2/, as configured in config.py.

Code

Run it yourself

Linux is strongly recommended: the equivariant layers in the feature encoder need it for full functionality. Developed and tested on Ubuntu 20.04+ with CUDA 12.x.

Install

# NVIDIA L40S (46 GB) | CUDA 12.x | Python 3.10
conda create -n spinesac python=3.10 -y
conda activate spinesac

pip install torch torchvision \
  --index-url https://download.pytorch.org/whl/cu121

pip install -r requirements.txt

Train and evaluate

# validate the train/val/test splits
python data_splits.py

# epoch-based training
python train_tvt.py

# per-vertebra TRE reporting
python evaluate_3sac.py
